| Description | |||||||||||||

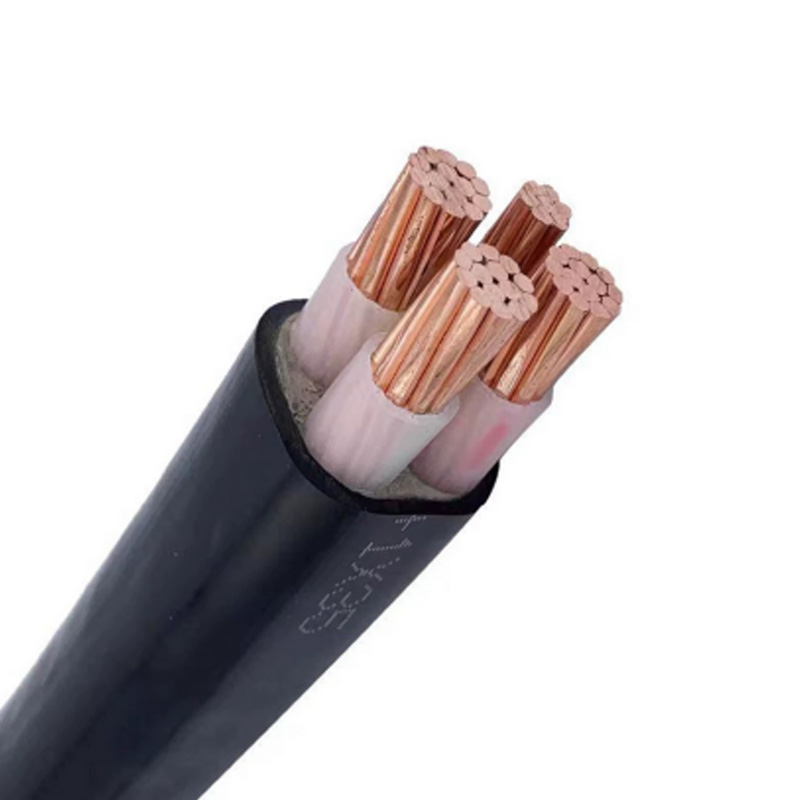

| YJV is a XLPE (cross-linked polyethylene) insulated, PVC sheathed power cable designed for fixed installation in power distribution networks. Rated 0.6/1kV. Ideal for industrial plants, commercial buildings, infrastructure projects, and underground power transmission. | |||||||||||||
| Application | |||||||||||||
| It is suitable for fixed installation in power transmission and distribution lines such as urban power grids, industrial power distribution, building electrical systems, tunnels, and cable trenches, particularly where high current carrying capacity and thermal performance are required. | |||||||||||||
| Key Specifications: | ||
| Parameter | Value | |
| Voltage rating | 0.6/1kV | |
| Insulation material | XLPE (cross-linked polyethylene) – thermoset | |
| Sheath (Jacket) | PVC (polyvinyl chloride) | |
| Conductor cross section range | 1.5 / 2.5 / 4 / 6 / 10 / 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 mm² | |

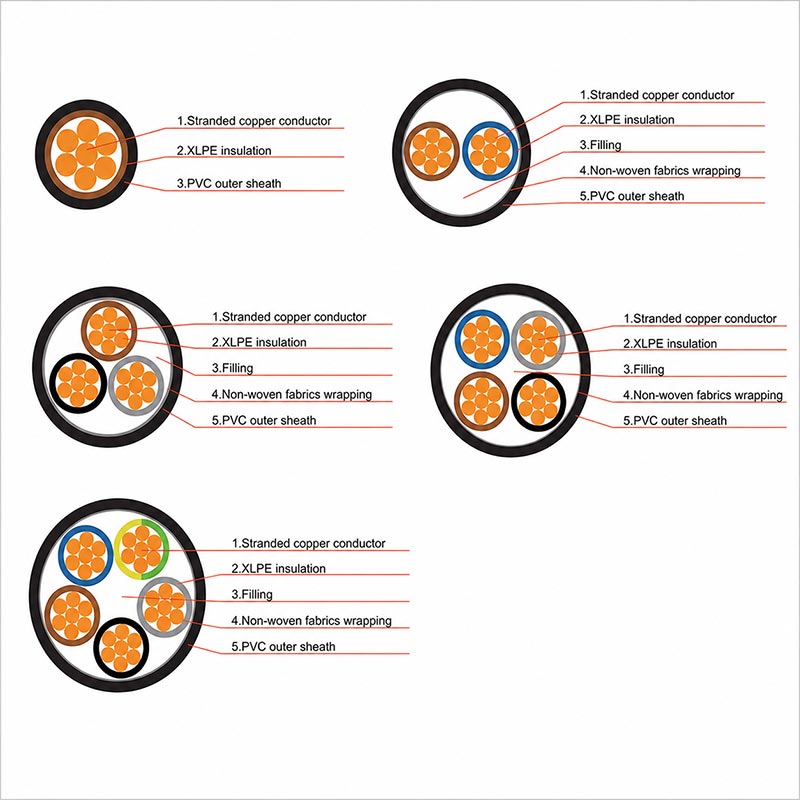

| Number of cores | 1, 2, 3, 4, 5 cores (3+1, 3+2, 4+1 core configurations available) | |
| Sheath color | Black (standard for outdoor/UV) | |
| Model and Parameters | ||||
| Model | Name | Rated Voltage | Normal area(mm²) | Max Resistance @20℃(Ω/km) |
| YJV | Copper Conductor,Unarmouered Low Voltage XLPE Insulated PVC Sheathed Power Cable | 0.6/1kV | 1.5 | 12.1 |
| YJV | 0.6/1kV | 2.5 | 7.41 | |
| YJV | 0.6/1kV | 4.0 | 4.61 | |
| YJV | 0.6/1kV | 6.0 | 3.08 | |
| YJV | 0.6/1kV | 10.0 | 1.83 | |
| YJV | 0.6/1kV | 16.0 | 1.15 | |
| YJV | 0.6/1kV | 25.0 | 0.727 | |
| YJV | 0.6/1kV | 35.0 | 0.524 | |
| YJV | 0.6/1kV | 50.0 | 0.387 | |
| YJV | 0.6/1kV | 70.0 | 0.268 | |
| YJV | 0.6/1kV | 95.0 | 0.193 | |
| YJV | 0.6/1kV | 120.0 | 0.153 | |
| YJV | 0.6/1kV | 150.0 | 0.124 | |
| YJV | 0.6/1kV | 185.0 | 0.099 | |
| YJV | 0.6/1kV | 240.0 | 0.075 | |
| Aluminum Conductor Version (YJLV): | ||||
| Model | Name | Rated Voltage | Normal area(mm²) | Max Resistance @20℃(Ω/km) |
| YJLV | Aluminum Conductor,Unarmouered Low Voltage XLPE Insulated PVC Sheathed Power Cable | 0.6/1kV | 16.0 | 1.91 |
| YJLV | 0.6/1kV | 25.0 | 1.200 | |
| YJLV | 0.6/1kV | 35.0 | 0.868 | |
| YJLV | 0.6/1kV | 50.0 | 0.641 | |
| YJLV | 0.6/1kV | 70.0 | 0.443 | |
| YJLV | 0.6/1kV | 95.0 | 0.320 | |
| YJLV | 0.6/1kV | 120.0 | 0.253 | |
| YJLV | 0.6/1kV | 150.0 | 0.206 | |
| YJLV | 0.6/1kV | 185.0 | 0.164 | |
| YJLV | 0.6/1kV | 240.0 | 0.125 | |
| YJV Series – Flame Retardant/Fireproof Upgrade Model | |||
| Flame Retardant Grades (ZR-YJV): | |||
| Grade Code Test Standard Application | |||
| Class C ZC-YJV IEC 60332-3-24 (C) General flame retardant | |||
| Class B ZB-YJV IEC 60332-3-23 (B) Higher requirement | |||
| Class A ZA-YJV IEC 60332-3-22 (A) Highest – critical facilities | |||
| Fire Resistant (NH-YJV): | |||
| Feature Specification | |||
| Construction XLPE insulation + mica glass tape over conductor | |||
| Test standard IEC 60331 (950°C flame, 90 minutes) | |||
| Circuit integrity Yes – continues to conduct during fire | |||
| Best for Fire pumps, emergency lighting, fire alarms, evacuation | |||
Automated production, precision testing, and strict QC ensure every product meets standards for reliable quality and delivery.
You should consider the application (indoor/outdoor), voltage rating, current load, environmental conditions (temperature, moisture, chemicals), and local safety standards (like IEC or GB). If unsure, share your project details with us, and we’ll recommend the best solution.
Our cables are manufactured to meet major international standards including IEC, and comply with Chinese national standards (GB). Certifications are available upon request.
Yes. We offer full customization on cable length, conductor size, insulation material, jacket color, and packaging to meet your specific project or branding needs.
MOQ varies by product type. For standard cables, we have low MOQs; for custom orders, MOQs are flexible. Contact us with your requirements for details.
Standard orders usually take 7–15 working days. Custom orders take 15–30 working days, depending on specifications and quantity. Delivery time also depends on your location and shipping method.
We accept T/T (Telegraphic Transfer), L/C (Letter of Credit), and other terms by negotiation. Our standard terms are 30% deposit, 70% balance before shipment.
Every batch of cables goes through strict quality control, including raw material inspection, production process checks, and final performance testing (electrical, mechanical, and environmental tests). We can provide test reports for your order.
Yes, we provide free small samples for quality testing (you only cover the shipping cost). Bulk order samples can also be arranged based on your requirements.
Our cables come with a standard warranty against manufacturing defects. The warranty period varies by product type, usually 1–3 years under normal use conditions.
Just send us your requirements (cable type, specification, quantity, delivery destination), and our sales team will provide a detailed, no-obligation quote within 24 hours.
